HushMat floor-pan kits and VEVOR’s 200 mil aluminum-foil/foam roll serve different automotive jobs. HushMat’s model-specific floor kits use its adhesive butyl damping sheet to manage panel vibration and thermal transfer. VEVOR’s selected 36 sq ft foil-faced foam material is a thicker insulation layer. The original comparison treated them almost as interchangeable, but that would be misleading when planning a safe cabin-floor assembly.
Evidence limits: this is a specification and installation comparison, not a hands-on laboratory test. HushMat publishes multiple separate floor-pan, bulk and universal kits with different inventories. Its exact Amazon-linked B0FMZX1MB4 has not been mapped to a definite maker part number, vehicle fitment or square footage. VEVOR publishes a 36 sq ft, 200 mil foam-foil product family; the exact retailer variant must also be checked before purchase.
Start by separating damping from an insulating layer
A constrained adhesive butyl sheet bonded to a resonating metal panel can reduce its vibration. A foam insulation roll typically supplies a thickness of lightweight material between surfaces and may assist thermal and some acoustic applications, but it is not automatically a 1 lb/sq ft mass-loaded vinyl barrier or equivalent metal damping treatment. Foil facing alone does not make foam safe against direct exhaust heat.

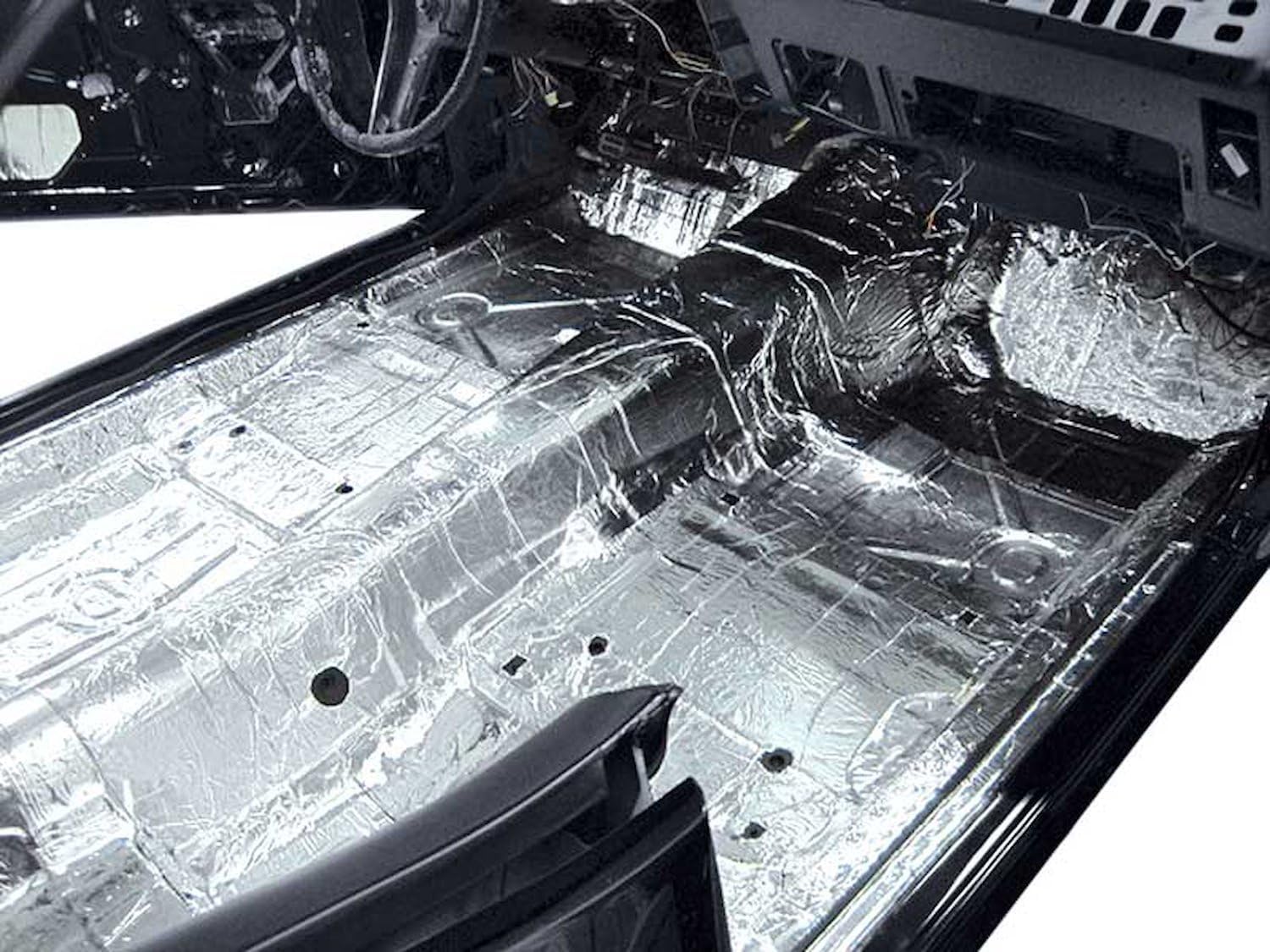

HushMat custom floor pan: check the vehicle kit

The HushMat manufacturer’s FAQ explains that custom floor-pan kits are planned by year, make and model and cover the floor from below the pedals back toward the rear seat (or cab rear wall for pickups). It distinguishes these from firewall kits and says over 366,000 kit combinations exist. That is important: “floor pan” is not itself an adequate product identifier.
HushMat’s floor-product catalog includes a universal Floor & Dash 10401 kit advertised as twenty 12 × 23 inch Ultra sheets (38.7 sq ft), a different 58 sq ft bulk-kit format, and thousands of model-specific products. These cannot all be equated with the unchanged Amazon B0FMZX1MB4 without an exact model/SKU match. The separate SPD parent article currently calls its subject a “Custom Floor Pan Insulation Kit” but then describes a 30-sheet, approximately 58 sq ft HushMat Bulk Kit. Its inconsistency remains a recorded neighboring-page exception, not a verified specification for the current comparison.
Across the HushMat Ultra family, the manufacturer describes a butyl blend with a foil facing, pressure-sensitive peel-and-stick application and published material testing. Its FAQ describes Ultra as nominally 1.5 mm thick, around 0.47 lb/sq ft. Some different manufacturer pages display slightly inconsistent thickness and weight figures. Do not extrapolate the stated –30°F to +550°F family marketing temperature range into a guaranteed in-use safety certification for the entire altered vehicle.
Before ordering, ask for the exact HushMat part number, year/make/model, covered panels, sheet count and included installation instructions. The existing SPD HushMat review offers historical description, and the original Amazon link is preserved for separate verification.

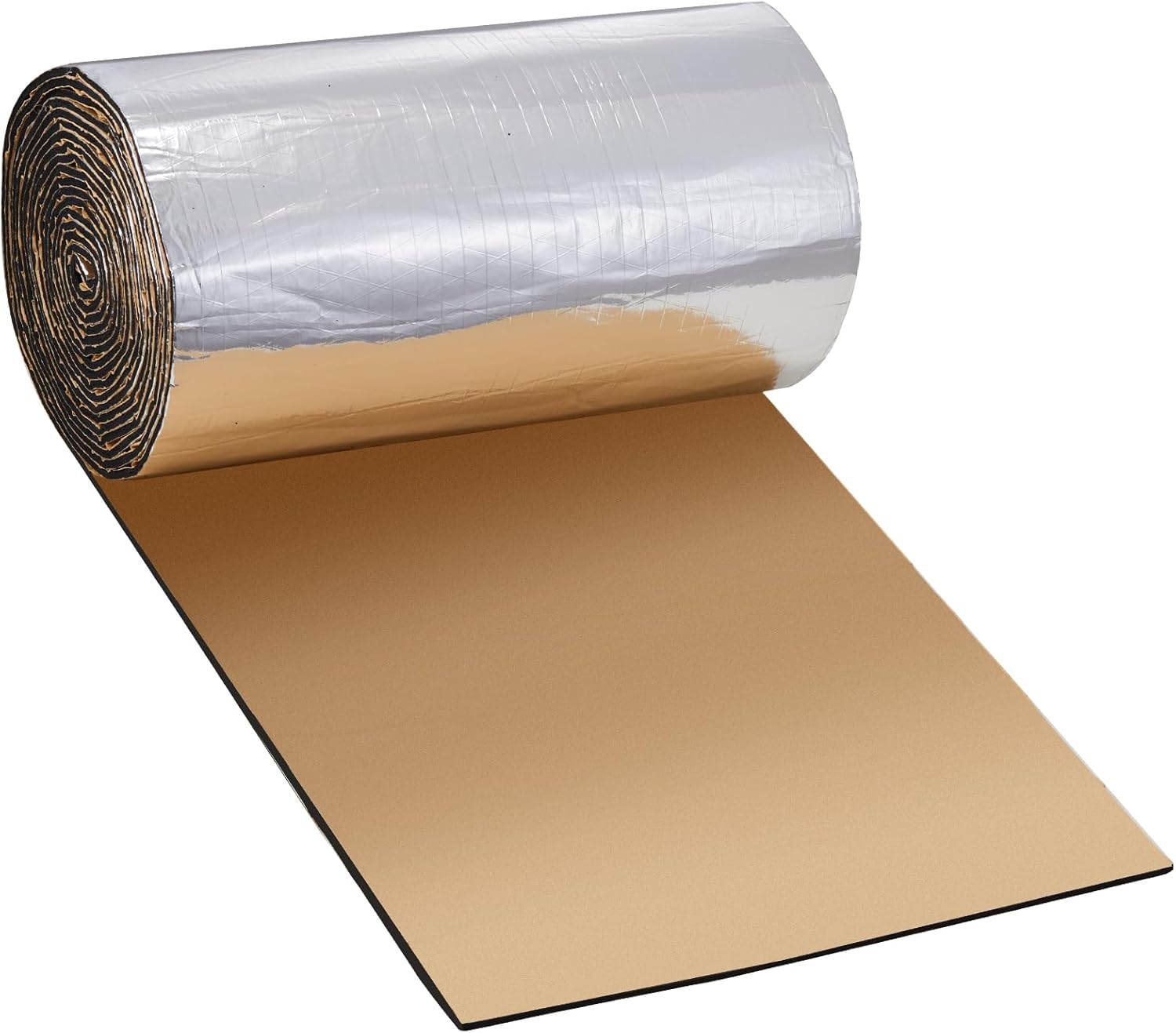

VEVOR Noise Grabber: 36 sq ft foam/foil insulation

On VEVOR’s product page the 36 sq ft, aluminum-foil/foam selection is listed as model 6003-76mm-black, with a thickness of 200 mil (5.1 mm) and a roll approximately 16.5 × 315 inches. The nominal geometry yields 16.5 × 315 ÷ 144 ≈ 36.09 sq ft before trimming, consistent with the advertised rounded 36 sq ft.
VEVOR also lists distinct size and material choices on the same product family page: 16, 25, 36 or 52 sq ft and either foil/foam or foil/butyl depending on selection. The published claims of waterproofing, fire resistance and heat insulation are manufacturer marketing descriptions rather than independent certificate details for every offered SKU. Do not apply them to adjacent engine or exhaust hot spots or safety-critical assemblies without model-specific documents.
The original comparison’s B0CPY4GFKF Amazon route remains unchanged. The manufacturer evidence supports the advertised 36 sq ft, 200 mil foam-foil family, but we cannot independently guarantee the current Amazon offer resolves to that exact selection or confirm price/stock. The existing VEVOR source review supplies additional context. Inspect the Amazon selection before ordering.
Practical comparison
| Consideration | HushMat floor-pan family | VEVOR 36 sq ft foam roll |
|---|---|---|
| Original Amazon ASIN | B0FMZX1MB4 | B0CPY4GFKF |
| Primary material role | Butyl panel damping / thermal layer | Foil-faced insulating foam layer |
| Nominal thickness | Ultra family around 1.5 mm; exact kit unverified | 200 mil / 5.1 mm |
| Area | Varies by model-specific or bulk kit; not locked to ASIN | 36 sq ft selected manufacturer option |
| Shape | Custom or pre-cut adhesive pieces | Cut-to-fit 16.5-inch-wide roll |
| Acoustic evidence | Product-specific damping family data | Product marketing claims, no identical comparison test |
| Major purchase check | Correct fitment/SKU, included area | Foam versus butyl variant and heat rating |
Which should go under your carpet?
If the vehicle floor is resonating, butyl damping may be appropriate as a bonded layer on a clean metal pan. If your main issue is thermal comfort or under-carpet padding, a compatible insulation material may complement damping after clearance and moisture paths are evaluated. A foam roll should not be installed directly in place of an automotive-rated floor treatment merely because it is thicker.
Plan the final assembly rather than buying by material area alone. Check the carpet/seat mounting clearance, pedals, cabling, wiring penetrations, drainage and service access. Custom vehicle kits have to match the car’s geometry; large insulation rolls often need careful trimming and edge sealing.
Installation and safety essentials
- Confirm actual model and variant for both ASINs; don’t assume the generic HushMat name identifies a precise kit.
- Inspect original vehicle insulation, floor corrosion and moisture sources before adding layers.
- Avoid interfering with throttle/brake pedals, seat/airbag wiring, wiring harnesses and floor drains.
- Prepare surfaces and roll any adhesive mat according to the product instructions.
- Keep foam clear of high-heat zones and do not treat a reflective foil as a certified heat shield.
- Verify vehicle-specific flammability and fire constraints; vague retailer “fireproof” claims are not test certificates.
Common questions
Is the HushMat kit definitely 58 sq ft?
No. The existing SPD parent mixes a bulk-kit description with a custom-floor-pan heading. The exact affiliate ASIN’s package and model fitment are not independently confirmed.
Is VEVOR’s 200 mil foam the same as a butyl damping mat?
No. The manufacturer offers separate foam and butyl selections. Their composition and primary roles differ despite similar marketing descriptions.
Are these enough to stop tire or exhaust noise?
Not necessarily. Noise may travel through multiple panels and openings, while the materials require safe placement and the correct vehicle assembly.
Which is easier to install?
That depends on the job: fitted adhesive pieces reduce some cutting on the right vehicle, while a roll is flexible in geometry but requires a complete cut plan.
SPD’s decision
Consider the HushMat family for a confirmed vehicle-specific bonded damping layer. Consider VEVOR’s foam/foil roll for a compatible insulating role when the selected variant, clearances and temperature limitations are verified. We would not publish a made-up coverage or acoustic advantage for the unresolved HushMat Amazon kit.
Affiliate disclosure: The Amazon product links in this comparison are affiliate links. As an Amazon Associate I earn from qualifying purchases.
Good luck and happy soundproofing!
