HushMat 10450 vs NVX UNIFRING: Damping or Speaker Seal?

Affiliate disclosure: This article contains affiliate links. We may earn a commission if you purchase through them, at no additional cost to you.

Choose by the work being done: HushMat’s 10450 speaker and Wave Breaker combination adds a butyl damping layer to vibrating metal and separate foam pads behind the speaker. The NVX UNIFRING is instead a six-piece adhesive foam-ring/baffle kit for controlling the speaker-to-trim interface. They are related car-audio treatments, not direct replacements or independently tested winners in a decibel-reduction contest.

Disclosure: As an Amazon Associate I earn from qualifying purchases. This article retains the two original tracked ASINs, B0FY3PY2C3 and B0F48YTVV3. Manufacturer part 10450 identifies the HushMat product family, but its exact present retailer-selected ASIN configuration has not been independently verified; check the checkout package. No independent listening or measurement trial was carried out.

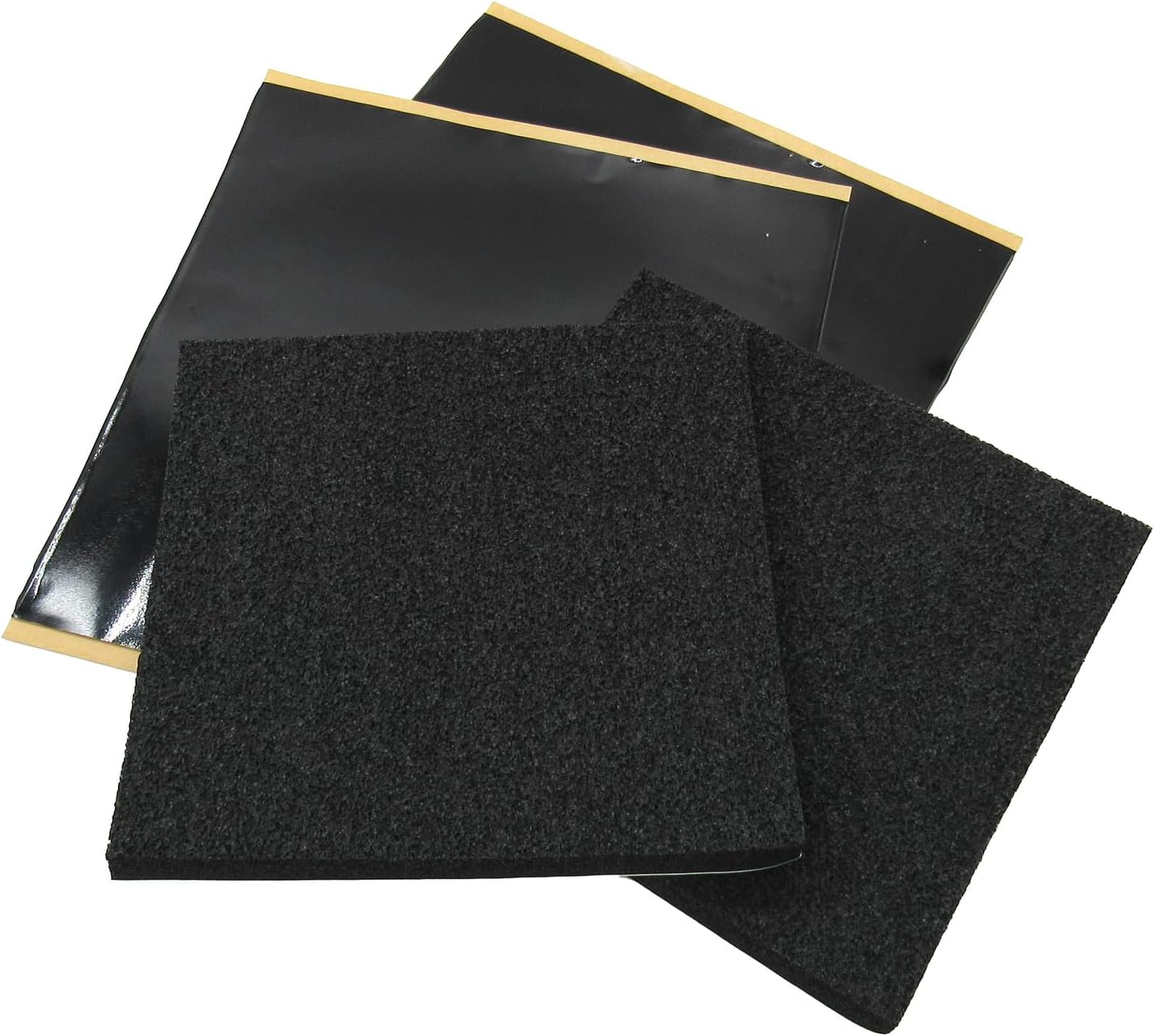

HushMat speaker-and-wave-breaker combination

HushMat 10450 speaker damping sheet and Wave Breaker foam combo kit source image
SPD’s published original HushMat 10450 source image; do not infer current seller option or all kit components from this picture alone.

The original HushMat tracked ASIN B0FY3PY2C3 was saved with a review of HushMat Speaker and Wave Breaker Combo Kit 10450. HushMat’s official 10450 product page and an independent authorized car-parts listing document two self-adhesive HushMat Ultra damping sheets plus two foam Wave Breaker pads. One retailer describes 10 × 10-inch butyl sheets and 8 × 7-inch foam pads; those dimensions should be confirmed for the exact delivered kit.

The Ultra sheets can be applied on appropriate sheet metal near the speaker to reduce panel vibration, while the soft foam pads target unwanted wave reflection behind the speaker. This is a two-material treatment: foam behind a speaker is not the same as a front sealing ring, and a butyl sheet is not the same as a light fabric acoustic absorber. The existing SPD HushMat source review remains the original product-family reference.

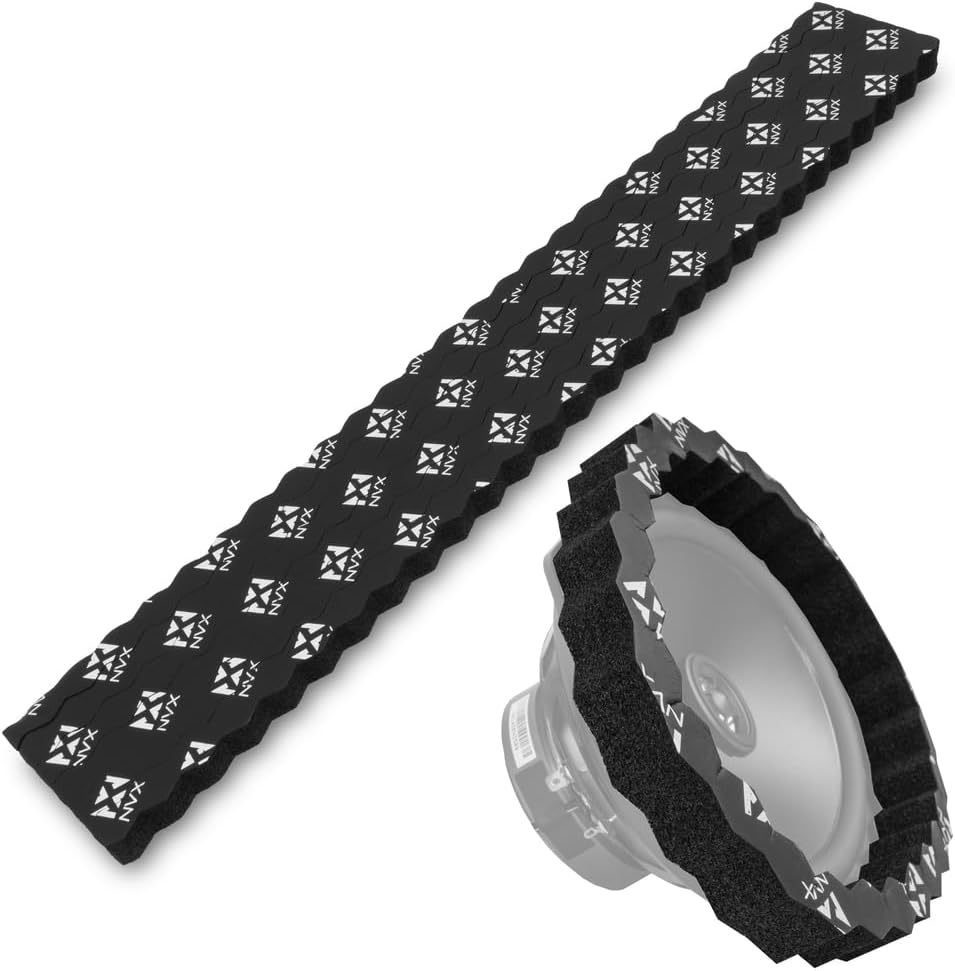

NVX UNIFRING speaker ring kit

NVX UNIFRING original speaker ring and baffle kit image from the published source review
Site-owned NVX UNIFRING source-review photo; audio improvement and selected package are not independently tested or locked.

The original NVX ASIN B0F48YTVV3 has separate indexed product data identifying the UNIFRING six-piece universal kit, with approximately 1-inch-thick water-resistant foam and adhesive. The intended job is near the speaker perimeter, where contact between a loudspeaker and interior door panel can create a rattle or allow the front sound wave to leak away from the cabin. The actual number of usable speaker positions depends on component dimensions and trimming.

Unlike the HushMat combination, the NVX product should not be treated as a full-coverage butyl mat or an exact replacement for damping bare metal. Its speaker-fit purpose differs from a HushMat Ultra sheet. The original SPD NVX source review is preserved for the product history.

Quick comparison

Feature HushMat 10450 family NVX UNIFRING
Original ASIN B0FY3PY2C3 B0F48YTVV3
Historical kit description 2 damping sheets + 2 Wave Breaker foam pads 6-piece foam ring/baffle kit
Principal damping material Butyl-based Ultra sheet Foam at speaker-to-trim interface
Additional acoustic component Wave Breaker rear-speaker pads Integrated front sealing/baffle foam
Installation Peel, cut and press appropriate material onto supported vehicle surface Size, fit and adhere around compatible speaker opening
Acoustic test on the same car None verified here None verified here
Current retailer-selected kit Not independently locked to maker’s exact contents Not independently locked to seller’s exact contents

Installation decisions before buying

If the door metal vibrates: locate the vibrating panel or loose fastener before sticking material onto it. A correctly applied HushMat Ultra sheet may reduce that panel’s resonance; a ring around the speaker may leave the underlying vibration unchanged. Clean the surface as instructed by HushMat and keep drains, wires, airbags, window mechanisms and fasteners accessible.

If the door trim leaks or rubs around the speaker: a foam perimeter treatment such as NVX can be the better-targeted format. Measure the speaker’s outer flange, clearance to door card and travel of the window glass. One-inch foam must be allowed to compress correctly; do not crowd the cone or use it in an area where it could foul moving parts.

If cabin noise is the real problem: neither local speaker kit will independently create a tested sound-isolating vehicle shell. Road noise also depends on structure, glazing, tires, seals and broad panel vibration. No head-to-head audio-frequency response, distortion or decibel measurements have been established for these exact packages in the same vehicle.

Which is the better fit?

HushMat is the stronger shortlist when you have both a vibrating metal speaker-mount surface and unwanted rear-wave reflections, and the maker’s two-plus-two combination is appropriate. NVX is more directly focused on the perimeter of the loudspeaker, where an adjustable foam seal is needed.

The two original sponsored destinations remain HushMat and NVX. Check the current selected variant and supplied component count for each. For the distinct approach of two dedicated foam-ring kits, see our SoundSkins versus NVX comparison.

Good luck and happy soundproofing!
