SGM Black vs WEUPE: 80 vs 50 mil, Which Pack?

SGM Black and WEUPE are both marketed as adhesive butyl automotive damping mats, but their nominal thickness and selected package sizes differ. SGM offers 80 mil (~2 mm) black butyl and foil mats in manufacturer-documented 10 sq ft and 36 sq ft boxes. WEUPE’s original ASIN is described as 50 mil (~1.27 mm) butyl mat in either 5 or 10 sq ft retailer options. Both original Amazon ASINs are connected to conflicting pack-size records, so neither must be described as a guaranteed fixed area at the original checkout.

Evidence method: We checked the two published SPD product reviews, their exact retained product ASINs, SGM manufacturer’s distinct box SKUs and ASIN-matched retailer specifications for both brands. No calibrated same-vehicle noise test, independent installed-STC figure, live retail stock determination or hands-on comparison has been performed.

Why butyl mats are used on vehicle metal

Foil-faced, self-adhesive butyl-based sheets can damp some resonant movement of car doors, trunks and other accessible metal panels when firmly bonded on properly prepared surfaces. They do not substitute for fixing a worn rubber window seal, a rattling seatbelt anchor, damaged weatherstripping or missing structural insulation. Nominal thickness, piece count and pack area affect installation choices but do not predict precise sound pressure reductions in decibels.

SGM Black: 80 mil foil-faced butyl in separate factory packs

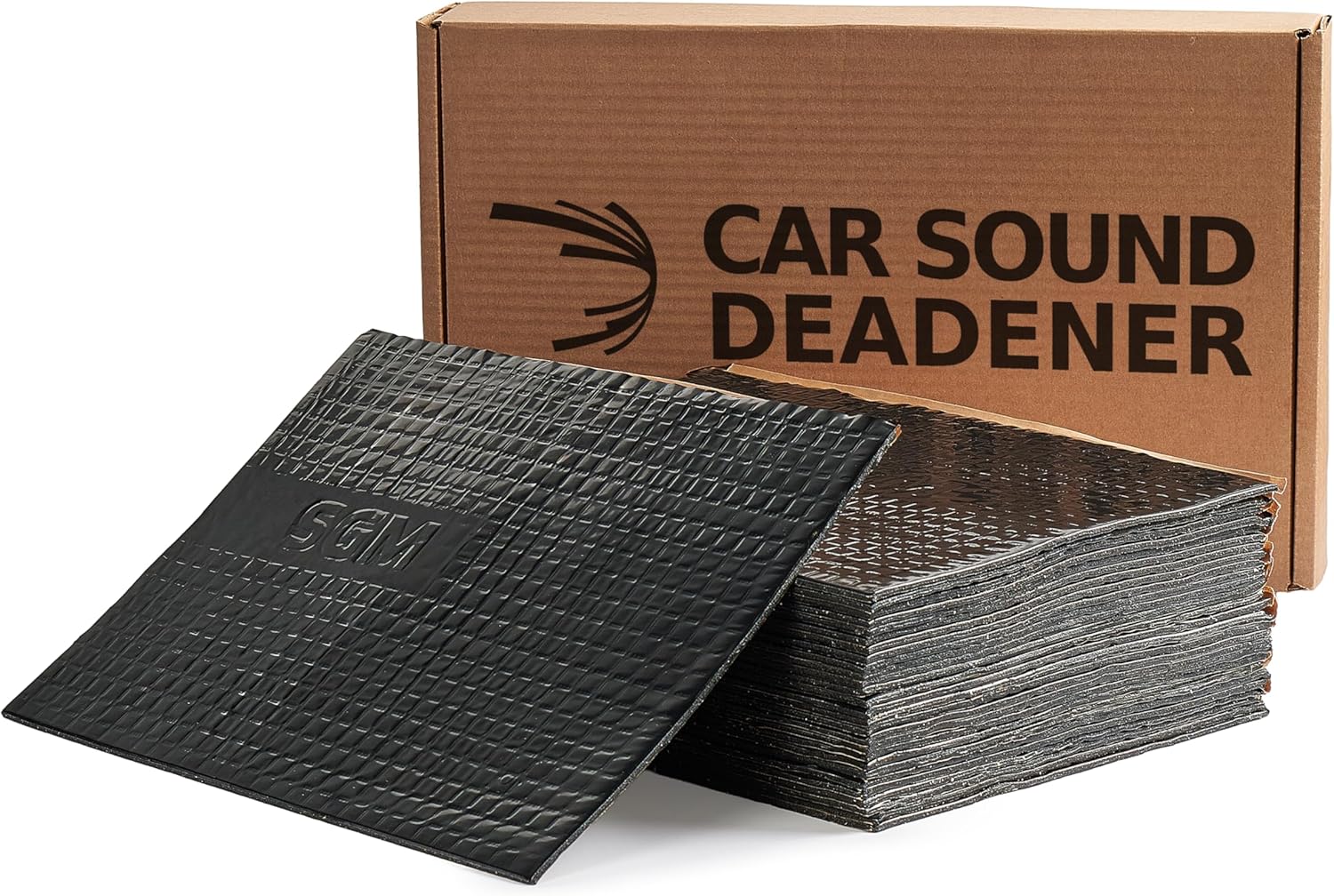

Existing SPD SGM Black 80 mil self-adhesive butyl and aluminum foil car damping source-review image
Source-review SGM Black asset; pack size cannot be established solely from a product photo.

SGM Techno’s first-party 10 sq ft listing identifies SGMBLK8010, containing ten 14.7 × 9.8-inch sheets with nominal 80 mil / 2 mm butyl mastic and aluminum foil. The calculated area is 10 × 14.7 × 9.8 ÷ 144 ≈ 10 sq ft. The manufacturer’s separate 36 sq ft page names SGMBLK8036, with 34 sheets at 15.7 × 9.8 inches, about 36.32 sq ft geometrically. These are distinct manufacturer SKUs, not two ways of describing one fixed shipment.

The original B09HPWP53S appears with SGMBLK8010 / 10 sq ft in an ASIN-matched retailer record, and with SGMBLK8036 / 36 sq ft in another ASIN-matched retail mirror. We cannot establish which size and corresponding sheet count the original US Amazon route currently selects. A quoted area ratio, price per area or claimed number of vehicle doors treatable must therefore remain conditional.

SGM promotes foil facing, embossed rolling marks and better performance than thinner mats. These are seller and manufacturer claims rather than independent evidence that the 80 mil material beats a particular 50 mil formulation in the same vehicle. Actual performance depends on compound, substrate and installation; adhesive and heat limits should be checked for the location. See the published SGM source review or inspect the unchanged SGM Amazon destination.

WEUPE: 50 mil butyl in small multi-sheet versions

Existing SPD WEUPE 50 mil adhesive butyl sound deadening car mat source-review product image
WEUPE source-review media; verify color and quantity on the original current seller offer.

An exact-ASIN WEUPE record associates B0F2N9C4HC with 50 mil butyl-based damping sheets nominally 14.5 × 10 inches, with a 5 sq ft package (five pieces, about 5.03 sq ft by sheet dimensions). Another matching-ASIN retailer entry instead labels a black 10 sq ft / ten-piece version, about 10.07 sq ft geometrically. A third regional record labels a silver 5 sq ft version. Color, piece count and area must be confirmed for the live selected listing.

WEUPE’s seller advertises around 0.7 lb per square foot of material and sometimes claims a “50% better” acoustic improvement. Neither is an independently established direct comparative result against this SGM Black kit. The 50 mil figure describes nominal thickness, not measured frequency-band vibration loss. A relatively thin small kit could suit narrow cavities or a targeted door repair if installed correctly, but using 50 mil material alone does not guarantee a quieter whole car.

Installers should cut WEUPE sheets around door access holes and leave water drains and moving components clear. Roll the material firmly as directed, on dry clean metal that is free of corrosion and moisture. The published WEUPE parent review provides additional product context. The original WEUPE Amazon link remains unchanged.

Variant-aware specifications

Factor SGM Black WEUPE
Original ASIN B09HPWP53S B0F2N9C4HC
Material Foil-faced self-adhesive butyl mastic Adhesive butyl automotive mat
Nominal thickness 80 mil / ~2 mm 50 mil / ~1.27 mm
Documented pack-size options 10 or 36 sq ft 5 or 10 sq ft
Nominal piece dimensions 14.7 × 9.8 or 15.7 × 9.8 in 14.5 × 10 in
Source issue Same original ASIN mapped to separate SGM models Same original ASIN mapped to different colors and counts
Direct measured same-car acoustic test Not established Not established

If SGM’s selected pack is 36 sq ft and WEUPE’s is 5 sq ft, the nominal area ratio would be 7.2 to 1. If SGM’s is 10 sq ft and WEUPE’s is 10 sq ft, the kits have equal marketed area. Other combinations fall between. These examples are material surface quantities only, not numerical effectiveness or value comparisons, and cannot be assigned to the original links without a confirmed retail selection.

Which should you buy?

Choose only after measuring the actual safe-access metal area, deciding whether 50 mil or 80 mil fits under trim and verifying delivered quantities. SGM’s 80 mil family may suit a project where a thicker foil-faced butyl mat is specified; WEUPE’s small-pack 50 mil format may be practical for localized work. The difference in brand or thickness is no substitute for identifying the resonant panel and avoiding installation over unsafe or moving mechanisms.

Safety and installation checklist

  • Confirm the seller’s exact model and current shipped sheet count under both original ASINs.
  • Measure treated metal and allow for waste, electrical access and fitting changes.
  • Do not obstruct water drains, window regulators, airbags, seatbelt anchors or ventilation.
  • Prepare dry, corrosion-free metal and use proper roller pressure.
  • Do not use foil-backed butyl as an exhaust heat shield without manufacturer approval.
  • Reinstall trim and test all moving systems before driving.

FAQs

Is SGM Black always 36 sq ft?

No. Its manufacturer sells 10 and 36 sq ft packages and the original comparison’s ASIN appears against both in retailer records.

Does WEUPE always include five sheets?

No. Same-ASIN records also describe a ten-sheet version, so the selected quantity requires checkout confirmation.

Is 80 mil always better than 50 mil?

No direct same-vehicle test establishes that. Thickness alone does not determine installed performance.

Can these stop wind noise through damaged door seals?

They mainly treat metal vibration; leaking weatherstripping needs appropriate repair.

SPD’s decision

Both are plausible foil/butyl vibration-damping products but must be compared as verified pack variants, not as guaranteed nominal area or an untested acoustic winner. Use fit, safety and actual seller identity to decide.

Affiliate disclosure: Both original Amazon product destinations are affiliate links. As an Amazon Associate I earn from qualifying purchases.

Good luck and happy soundproofing!
