GOSCHE’s 394 mil foam pad kit and Storystore’s 394 mil foam/foil insulation sheet address heat and some cabin acoustic management through thick foam layers, not the same mechanism as a thin butyl metal-vibration damper. The original GOSCHE package has 15 separate 9.8 × 15.7-inch pads, advertised at 16 sq ft. Storystore’s matched offer uses one wide 39 × 60-inch foil-faced sheet, advertised at 16.5 sq ft. Exact dimensions imply slightly different geometric totals.
Evidence scope: these configurations were cross-checked against ASIN-specific product listings and the two existing SPD source reviews. Product marketing about thermal or sound insulation is identified as seller-supplied; we did not conduct an acoustic or thermal measurement on installed vehicles, and neither product has been independently validated here for use against a hot exhaust component.
Why 10 mm insulation and 2 mm damping are different jobs
Foam and foil insulation can separate touching interior surfaces and contribute to thermal insulation and some acoustic absorption or decoupling, depending on placement and construction. A thin adhesive butyl-and-foil constrained damping layer is instead intended primarily to alter resonance of the metal panel to which it is bonded. A 10 mm foam mat does not automatically replace a purpose-designed high-temperature barrier, an airtight mass layer, or an automotive panel damping system. Neither product is a quantified substitute for a certified fire-shield assembly.
GOSCHE: 15 individual 10 mm foil-faced foam pieces

Multiple ASIN-specific seller records associate B09MCSZ6G7 with model GOSCHE-1122, described as 10 mm (394 mil) thick, containing 15 pads, each 15.7 × 9.8 inches. It is marketed as 16 sq ft of lightweight closed-cell polyethylene foam with an aluminum foil surface and peel-and-stick backing. Geometrically, 15 × 15.7 × 9.8 ÷ 144 ≈ 16.03 sq ft, consistent with the rounded seller claim.
An ASIN-labeled GOSCHE mirror also identifies 15 pieces, 16 sq ft and a 10 mm insulation role. Specific foam composition may vary across sales entries; the core is not shown here to be a heavy butyl sound-deadening mat. The original comparison’s suggestion that a thicker foam necessarily doubles performance is sales marketing, not a legitimate predictive acoustic rule.
The pad format can make fitting around tight trim and irregular interior cavities easier. But every pad creates edges; joining pieces needs consideration of air paths and surface coverage. Even though some seller copy lists roof, floor, trunk and engine-adjacent uses, place the material only where its actual temperature, flame and adhesive properties are appropriate. A seller’s word “heat shield” is not an independent certification for direct exhaust or engine proximity.
Read the existing GOSCHE review, or confirm the GOSCHE 15-piece option at the retained Amazon destination.

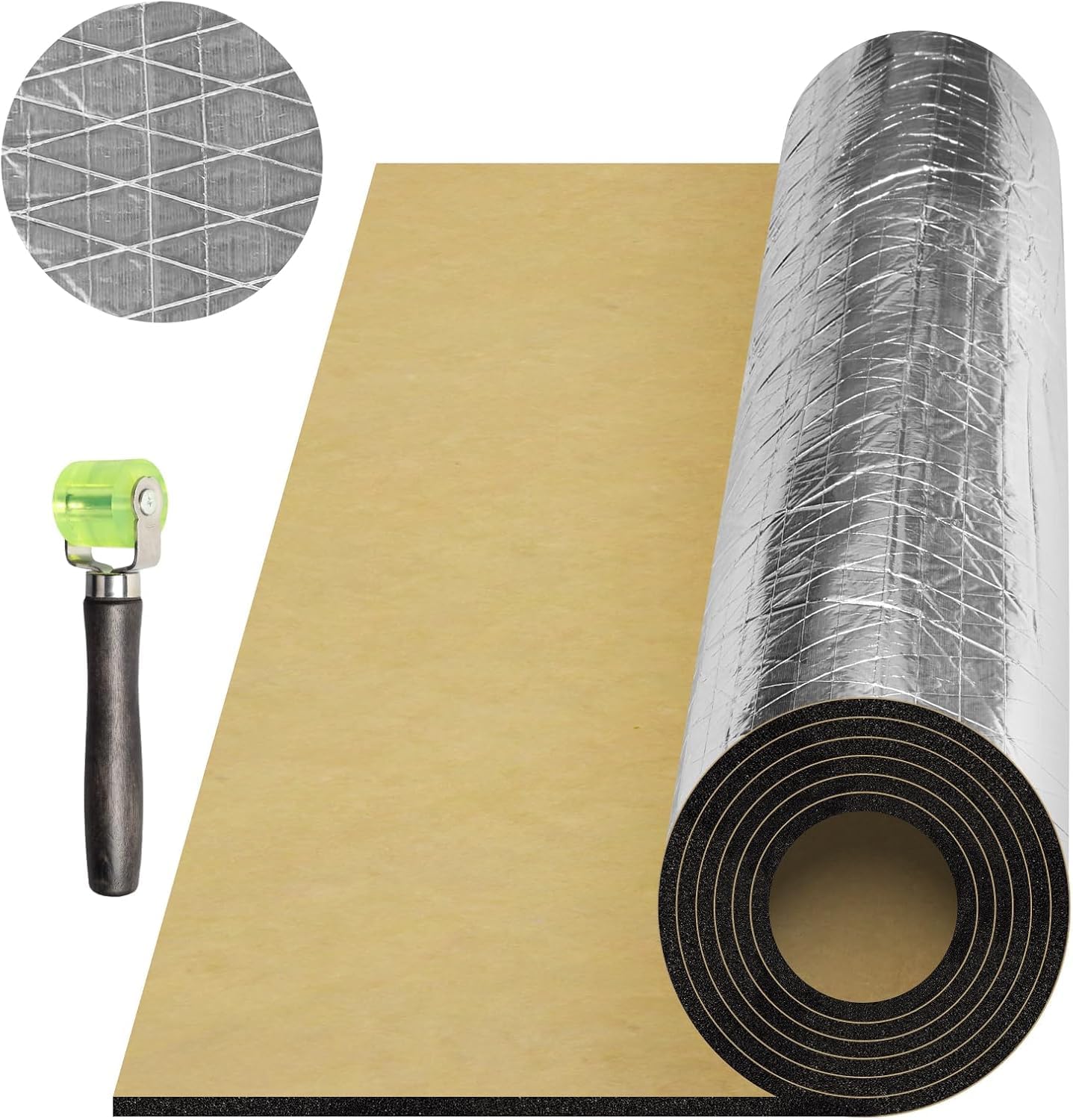

Storystore: one large 39 × 60-inch foil/foam sheet

An ASIN-specific Storystore entry identifies B0D3H4DJFX as a 39 × 60-inch, 394 mil (10 mm) thick foil-faced foam insulation sheet, seller-described as 16.5 sq ft. Calculation for exactly 39 × 60 is 16.25 sq ft; another regional entry uses a 39.37-inch width, yielding 39.37 × 60 ÷ 144 ≈ 16.40 sq ft. Both are near but not identical to the 16.5 sq ft market figure. The actual usable material will be less after trimming.
Retailer entries describe the material as aluminum-faced foam. The existing SPD parent also mentions fiberglass in the core, but the retrieved matched seller record does not independently establish a fiberglass constituent. We therefore do not rely on “fiberglass-backed” as a confirmed exact-ASIN characteristic. A separate listing calls the variant GYM rather than the earlier title’s generic model name, so the precise package label should be checked at checkout.
A wide foil-faced piece can reduce the number of joins on a large fairly regular section, but it may be harder to fold, cut and manage while applying adhesive. The seller’s high-temperature/fire-resistant marketing is not evidence of independently tested vehicle approval and does not justify placement next to the exhaust. See the SPD Storystore source review and verify the Storystore size at Amazon.
Practical size and format comparison
| Factor | GOSCHE 394 mil | Storystore 394 mil |
|---|---|---|
| Original ASIN | B09MCSZ6G7 | B0D3H4DJFX |
| Primary material role | Foil-faced PE/closed-cell foam insulation | Foil-faced foam insulation |
| Nominal thickness | 394 mil / 10 mm | 394 mil / 10 mm |
| Pack geometry | 15 × 15.7 × 9.8 in | One 39 to 39.37 × 60 in sheet |
| Advertised area | 16 sq ft | 16.5 sq ft |
| Calculated untrimmed area | 16.03 sq ft | 16.25–16.40 sq ft |
| Acoustic/thermal independent comparative rating | None established | None established |
It would be misleading to claim Storystore offers “exactly 0.5 sq ft more” without stating the rounded commercial figures and actual listed dimensions. Both are similarly sized insulation options in very different formats, and the installed result depends on placement, clearance and safe temperature exposure—not just the sheet’s thickness.
Which format fits the vehicle?
For awkward narrow spaces under trim where there is sufficient depth, individual GOSCHE pieces may be easier to shape and position. For a broad relatively flat interior cavity, Storystore’s large piece can reduce seams, though an adhesive-backed full-width sheet is unwieldy without templates and a clear plan. If the real problem is a ringing steel panel rather than insulating a permitted interior space, investigate a suitable constrained damping layer separately instead of assuming either thick foam option does the same work.
These materials are 10 mm thick, which can interfere with carpet seating, door trim, switch movement or fasteners. Do not assume it will fit behind a door card. The chosen material must not trap water or obstruct ventilation openings and electronic components.
Installation and safety checks
- Confirm GOSCHE’s 15-piece quantity and Storystore’s one-piece dimensions at purchase.
- Make a full-size cut plan and check that there is 10 mm of allowable assembly clearance.
- Clean, inspect and dry panels; deal with any moisture, mold or corrosion first.
- Keep seatbelt anchors, airbag deployment paths, latches, mechanisms and drains free.
- Never assume generic foam is safe in an engine bay because its foil surface reflects some radiation.
- Obtain actual product fire and temperature documentation before installing near heated components.
FAQs
Is 394 mil the same as 10 mm?
Yes, to normal product rounding: 394 mil is approximately 10.0 mm.
Is Storystore exactly 16.5 sq ft?
The advertised amount is 16.5, but the recorded geometric dimensions calculate to approximately 16.25 or 16.40 sq ft depending on source width. Confirm physical size before buying.
Can either replace butyl damping on ringing metal?
Not as an assumed one-for-one substitute. Foil-faced foam and butyl constrained damping solve different physical problems.
Is a foil face a certified exhaust heat shield?
No. Thermal, flame and adhesive limitations require test data and the vehicle’s safe installation design.
SPD’s choice
Consider GOSCHE for a small-piece 10 mm foam layout and Storystore for one broad 10 mm sheet when the actual temperature and clearance requirements are met. Neither product has a defensible measured acoustic advantage here, and the original fiberglass claim for Storystore remains unverified.
Affiliate disclosure: The two original Amazon links are affiliate links. As an Amazon Associate I earn from qualifying purchases.
Good luck and happy soundproofing!
