VEVOR vs CUKWUYBY: 50 mil Sheets or Butyl Roll?

VEVOR’s 50 mil automotive butyl mat comes in a 47-piece kit marketed as 52 sq ft; CUKWUYBY’s alternative is a narrow, continuous butyl roll marketed as 36 sq ft. These are different installation formats, and their seller records contain meaningful dimensional ambiguities. VEVOR’s own listed sheet geometry does not add up to 52 sq ft, while the same CUKWUYBY Amazon ASIN is associated with both 36 and 18 sq ft roll lengths by different sellers. We cannot call either pack size a verified delivered quantity.

Method: this article compares the VEVOR manufacturer’s 50 mil product sheet with ASIN-matched CUKWUYBY retailer records and our two original standalone reviews. It is not a same-car measured test, and we do not convert manufacturer marketing into an unverified acoustic, thermal or flammability advantage.

What matters in a butyl-and-foil metal damping system

A viscoelastic butyl mat bonded to sheet metal helps manage its vibration response. An aluminum facing supplies a constraining layer and can improve handling. Neither a large roll nor a collection of patches is automatically an effective airborne-sound barrier, and panel damping will not fix noise from failed weatherstripping, loose mechanical components or gaps in the car’s bodywork. Coverage, adhesion, surface condition and safe access matter.

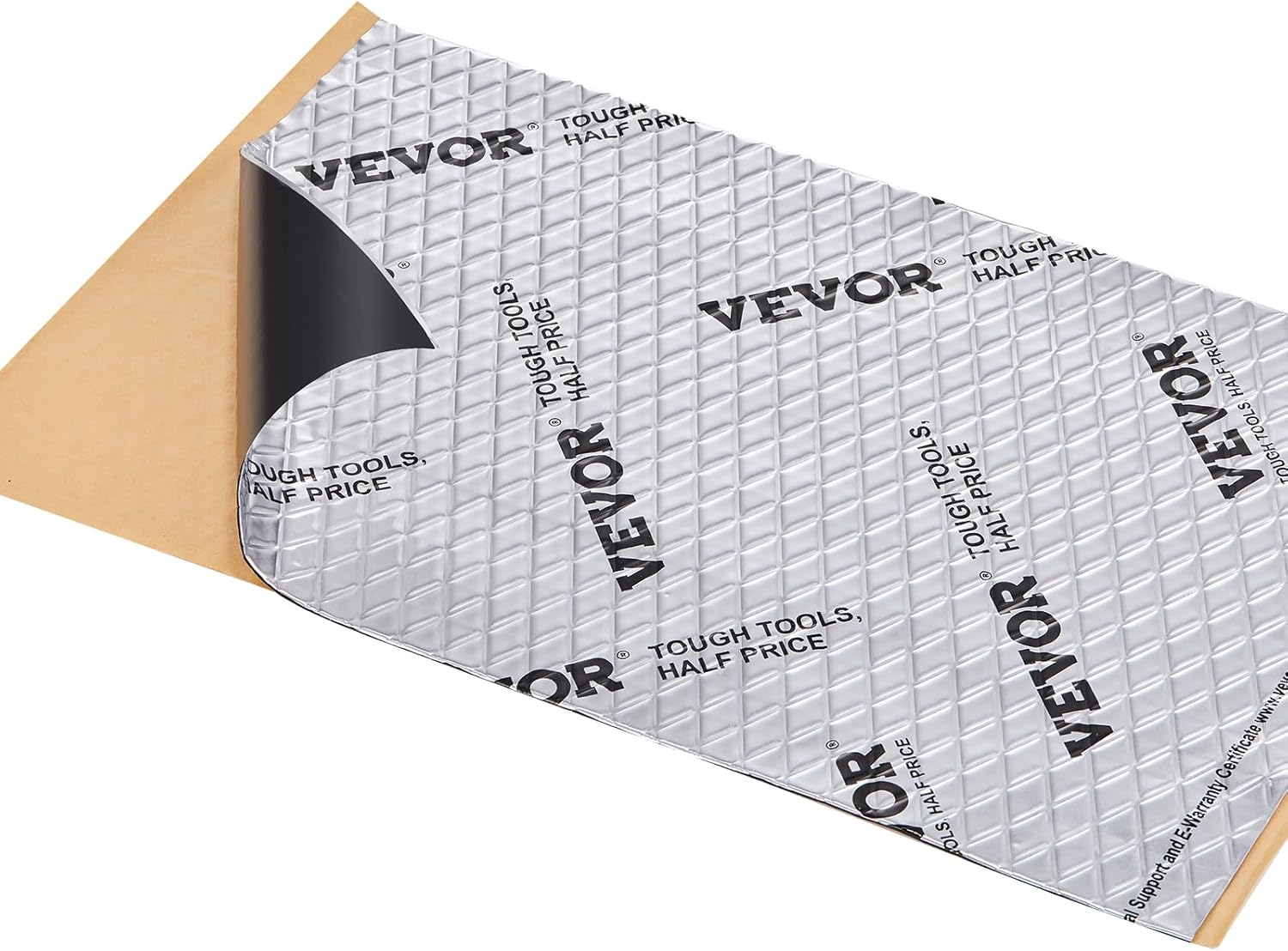

VEVOR: 47 cut pieces of 50 mil mat

VEVOR 50 mil automotive butyl sound-damping mat review image from SPD
Existing SPD VEVOR 50 mil source-review media; exact selected Amazon pack remains buyer-checkable.

VEVOR’s own product page describes model 6003-128mm-black as a 50 mil (1.3 mm) adhesive butyl sound-damping mat with an embossed aluminum facing and 47 sheets, advertised at 52 sq ft. Its specifications name 9.8 × 15.7 inches per sheet. The math: 47 × 9.8 × 15.7 ÷ 144 ≈ 50.22 sq ft. Another part of the same manufacturer listing instead says 14.5 × 10 in, which would yield 47.33 sq ft. Treat 52 sq ft as nominal advertised coverage, not a measured exact amount independently reproduced by its stated dimensions.

VEVOR markets a layered structure—aluminum, butyl and adhesive backing—for car floors, doors, roofs and trunks, with reflective-foil benefits. The page advertises waterproofing and fire resistance, but a product-family marketing statement is not a vehicle assembly certification. The model is different from its 80 mil butyl and much thicker foam/foil offers. A buyer should check that the selected retailer offer is actually this 50 mil, 47-sheet configuration.

The original Amazon B0CPY437BS route has been preserved but could not be independently mapped to an unambiguous live Amazon option. For detailed context, see the VEVOR standalone review or inspect the current VEVOR Amazon selection.

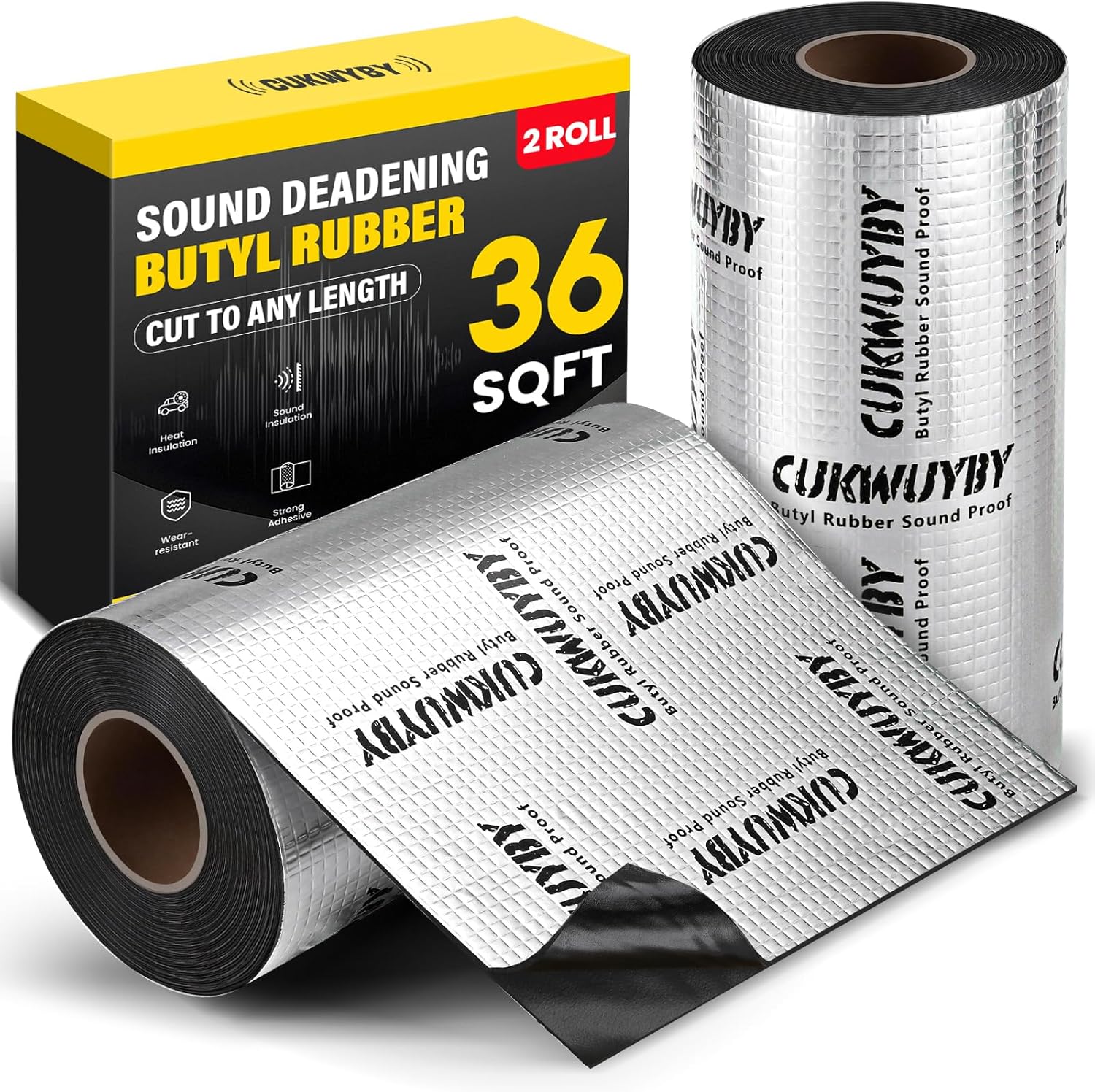

CUKWUYBY: 9.8-inch-wide roll, conflicting 18/36 sq ft sizes

SPD image of CUKWUYBY butyl sound deadening roll, length variant not confirmed
Site-owned CUKWUYBY product-review media; image does not independently establish the exact roll length.

A seller record for B0G34RNBHD identifies model XYDJ as an aluminum-faced butyl roll, 9.8 inches wide × 519.6 inches long, marketed as 36 sq ft. Those dimensions calculate to 9.8 × 519.6 ÷ 144 = 35.36 sq ft. A different regional listing instead labels the same ASIN model XYDJ1, 9.8 × 259.8 inches, about 17.68 sq ft by geometry and advertised as 18 sq ft. This is a major model and roll-length conflict; it is not rounding error.

Unlike VEVOR’s selected model, the retrieved CUKWUYBY exact-ASIN records do not establish a reliably fixed material thickness. Do not assume it is 50 mil, 80 mil or the same weight as VEVOR. The seller describes waterproofing, odorless use and heat insulation, but there are no independently verified standard certificates here demonstrating a particular noise attenuation or safe surface temperature.

Continuous roll material may be handy for a long narrow metal area, but a 9.8-inch width means larger flat surfaces require multiple parallel passes or joins. Cutting a large adhesive roll needs preparation and care to prevent the adhesive from sticking to itself. Before purchase, insist on model XYDJ versus XYDJ1, physical roll length, thickness and actual shipped material area. See the CUKWUYBY source review or the existing CUKWUYBY Amazon route.

Format and specifications

Buyer criterion VEVOR butyl sheets CUKWUYBY butyl roll
Original ASIN B0CPY437BS B0G34RNBHD
Core product Aluminum-faced adhesive butyl mat Aluminum-faced adhesive butyl roll
Nominal thickness 50 mil / 1.3 mm Exact linked variant unverified
Advertised coverage 52 sq ft 36 or 18 sq ft in conflicting records
Dimensions 47 × 9.8 × 15.7 in, manufacturer table 9.8 × 519.6 or 9.8 × 259.8 in
Calculated area ~50.22 sq ft using table dimensions ~35.36 or ~17.68 sq ft by variant
Independent same-car dB result Not established Not established

On the manufacturer’s and primary seller’s advertised labels only, 52 sq ft is larger than 36 sq ft by 16 sq ft; if the second seller’s 18 sq ft CUKWUYBY variant is the one shipped, the difference becomes 34 sq ft. These are kit quantity issues, not measurements of acoustic effectiveness. When coverage has this much uncertainty, published cost-per-area comparisons would be misleading without verified checkout variant and current price.

How to decide for a real installation

VEVOR’s many sheets are suited to staged placement around irregularly shaped accessible metal, with more edges and a repeatable cut plan. CUKWUYBY’s long roll may fit continuous narrow surface runs better but is unwieldy when installing in confined areas. Neither format beats the other in noise attenuation on current evidence. When car-door access is limited, choose material by specific safe placement locations rather than treating a whole panel with anything that fits.

A sensible plan begins with identifying the noise source. If a component is loose or an opening is letting sound through, adhesive metal damping may not solve it. Confirm how much metal is available behind trim and allow waste for cutouts, service openings and moving mechanisms.

Practical installation and safety

  • Verify each exact ASIN’s model, length, thickness and quantity before paying.
  • Clean and dry the metal, and repair corrosion or moisture leaks before concealing a panel.
  • Plan and cut sheets or strips before peeling the adhesive liner.
  • Use appropriate pressure/roller technique to ensure a reliable bond.
  • Keep drainage holes, window controls, airbag locations, seats and wiring unobstructed.
  • Do not use a foil-faced adhesive mat as an engine/exhaust heat shield on marketing alone.

Common questions

Is the CUKWUYBY roll definitely 36 sq ft?

No. The two relevant retailer records associate the same ASIN with 36 and 18 sq ft formats. The buyer must verify the selected SKU and shipped length.

Does VEVOR really provide exactly 52 sq ft?

That is the manufacturer’s advertised figure, but its published sheet dimensions yield a lower total. It is a nominal, not independently measured, pack quantity.

Are both butyl layers the same thickness?

VEVOR is listed as 50 mil; the exact linked CUKWUYBY roll does not have a reliably confirmed thickness.

Would a continuous roll be more soundproof than pieces?

No direct evidence here proves that. Adhesive performance, placement and the vehicle structure all influence results.

SPD’s decision

VEVOR is the clearer multi-sheet, 50 mil product category. CUKWUYBY is a plausible narrow-roll alternative, but exact variant identity and actual coverage are material buying uncertainties. Do not rank the products on unsupported dB or heat claims.

Affiliate disclosure: Both Amazon links are affiliate links. As an Amazon Associate I earn from qualifying purchases.

Good luck and happy soundproofing!
