NVX SDRF20 vs SGM Black 80 mil: 20 or 10–36 Sq Ft?

NVX SDRF20 and SGM Black 80 mil are both intended for automotive panel-noise projects, but their physical construction and pack descriptions differ. NVX integrates a butyl rubber core, aluminum foil and foam layer in a 1/8-inch thick, five-sheet, 20 sq ft kit. SGM Black sells 80 mil (2 mm) foil-faced butyl mastic in separate manufacturer models with 10 or 36 sq ft of nominal coverage. Its original Amazon ASIN is associated with both pack sizes in regional seller records, so the exact selected SKU must be checked before ranking value.

Source scope: NVX’s manufacturer specification, SGM Techno’s two model pages, matching original-ASIN retail records and both published SPD product reviews were checked. This page is not a hands-on installation, certified comparison, live Amazon checkout inspection or promise of a particular decibel reduction.

Constrained-layer damping versus added foam

Butyl-based materials bonded to metal panels may reduce resonance and some rattles, while foam can provide an additional decoupling or insulating function in compatible interior assemblies. Those are related but not identical acoustic roles. Window seals, air gaps and tire noise may dominate cabin sound even after metal treatment. Choosing simply by whether a box says “sound deadening” misses the actual source path and installation constraints.

NVX SDRF20: the documented five-sheet tri-layer pack

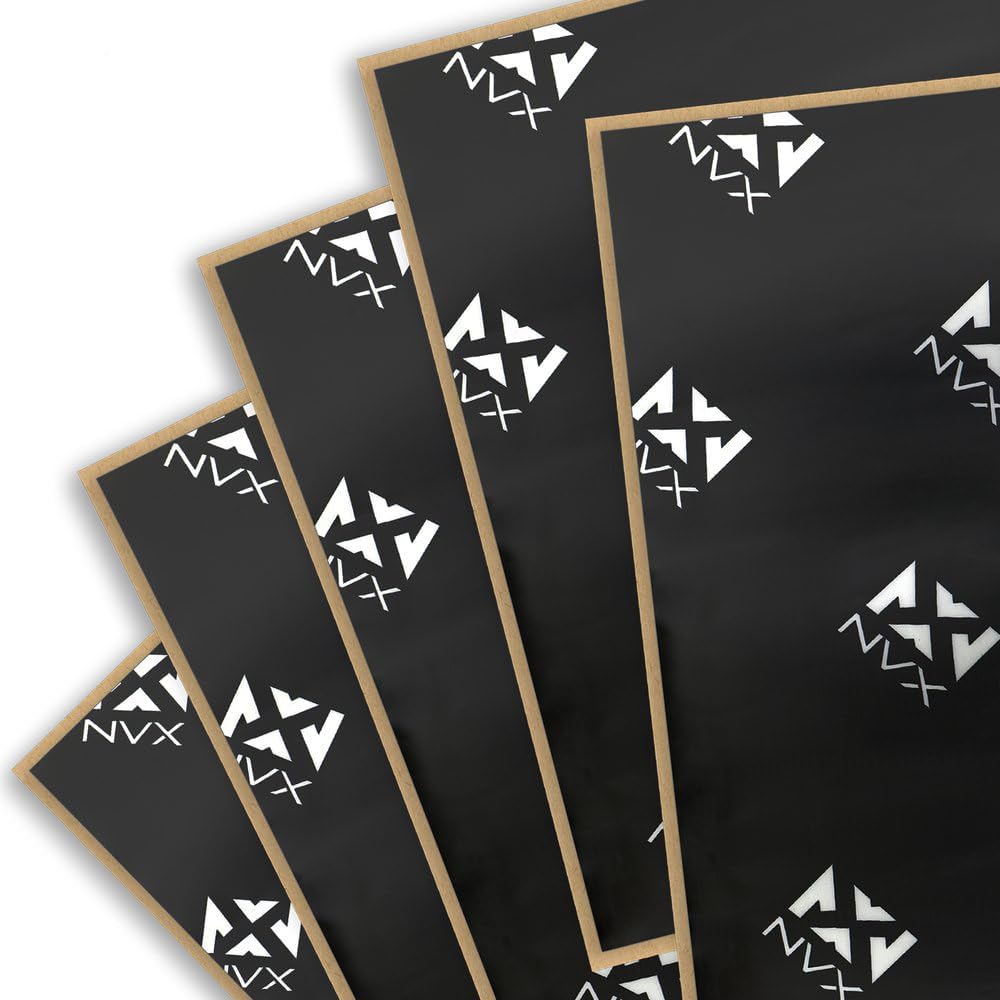

NVX SDRF20 five-sheet 20 square foot tri-layer automotive sound-damping material existing SPD review image
Existing NVX SDRF20 source-review asset, associated with the original 20 sq ft tri-layer product.

NVX’s own SDRF20 product page describes five 18 × 32-inch adhesive sheets, with an overall 1/8-inch thickness, combining butyl, foil and foam. The area calculation is 5 × 18 × 32 ÷ 144 = exactly 20 sq ft. An ASIN-specific seller record links the original B07VNHCNLM to the same NVX SDRF20 format.

NVX says the material can be used on several accessible vehicle panels and advertises a service-temperature range of −40°F to 300°F. These are maker claims, not independently certified approval for all hot surfaces. The foam face and 1/8-inch overall thickness mean the finished layer may require more trim clearance than a nominal 80 mil foil-faced butyl mat. A thinner mat and a thicker three-layer system should not be judged by material coverage alone, because they address different physical functions.

Check all sheets and backing before cutting, and follow proper clean/dry substrate preparation and roller pressure. The foam layer cannot compensate for an inadequate bond to metal or a blocked vehicle door drain. For more context see the published SPD NVX source review or verify the original NVX SDRF20 Amazon destination.

SGM Black 80 mil: separate 10 and 36 sq ft models

Existing SPD SGM Black 80 mil adhesive butyl mastic aluminum foil automotive sound-damping review image
Site-owned SGM Black source-review asset; the picture does not establish the exact Amazon pack size.

SGM Techno’s official SGMBLK8010 page defines a 10 sq ft pack with ten 14.7 × 9.8-inch pieces of 80 mil (2 mm) foil-backed butyl mastic. Geometry: 10 × 14.7 × 9.8 ÷ 144 ≈ 10 sq ft. Its SGMBLK8036 page separately markets 34 sheets of 15.7 × 9.8 inches, about 36.32 sq ft by geometry and sold as 36 sq ft. The two are separate product models, not the same package described using different units.

The original B09HPWP53S appears as SGMBLK8010 in an ASIN-matched retailer record and as SGMBLK8036 in another record for the same original ASIN. We cannot confirm the current US Amazon-selected pack using these inconsistent regional listings alone. Verify model, piece count and dimensions before using an advertised price to calculate cost per square foot.

SGM’s black butyl/foil mat is described for suitable doors, floors and trunks and markets damping and temperature benefits. Percentages used in brand advertising cannot be converted into a measured same-vehicle superiority over NVX. The published SPD SGM Black review provides source context, while the original SGM Black Amazon listing allows buyers to inspect the current selected offer.

Comparison table: exact roles, uncertain pack

Factor NVX SDRF20 SGM Black 80 mil
Original ASIN B07VNHCNLM B09HPWP53S
Structure Butyl + aluminum + integrated foam Butyl mastic + aluminum foil
Nominal total thickness 1/8 inch ≈ 3.18 mm 80 mil ≈ 2.03 mm
Advertised pack area 20 sq ft 10 or 36 sq ft depending on SGM model
Piece geometry Five 18 × 32 in 10 × 14.7 × 9.8 or 34 × 15.7 × 9.8 in
Exact source identity NVX SDRF20 well matched Original ASIN associated with two distinct manufacturer variants
Independent measured head-to-head noise reduction Not established Not established

If the selected SGM product is the 10 sq ft format, NVX has twice its nominal area. If SGM’s 36 sq ft product is shipped, SGM advertises 1.8 times NVX’s area. Those are simple purchase-surface calculations, not ratios of damping or insulation effectiveness; without a reliable checkout pack model and price, neither can be ranked by current cost per square foot.

Which material should you choose?

NVX may be useful when an integrated butyl/foil/foam layer and exactly 20 sq ft of known sheets suit the project. SGM can be appropriate when the goal is a conventional 80 mil butyl/foil damping material and its actual 10 or 36 sq ft SKU is established. A tight trim cavity may not have enough room for the extra NVX foam; a larger material box may be unnecessary for a single small repair.

Plan a safe metal-panel treatment rather than covering the entire cabin indiscriminately. Keep airbags, seatbelt points, wiring, water drains and service equipment unobstructed. Repair corrosion and leaks before covering sheet metal, and never assume a foil surface makes the mat an exhaust heat shield.

FAQs

Is SGM Black always sold as 36 sq ft?

No. SGM publishes separate 10 and 36 sq ft models, while retailer records conflict under this original ASIN.

Are both materials 80 mil?

SGM’s mat is described as 80 mil. NVX’s three-layer total is 1/8 inch, about 125 mil, and includes foam.

Does 1/8-inch NVX automatically beat SGM for road noise?

No independently matched installed acoustic test was identified; material construction and vehicle conditions matter.

Do these fix window-seal wind noise?

They are mainly panel treatment products. A leaking gasket needs a different repair.

SPD’s decision

Choose NVX for a directly documented 20 sq ft tri-layer package with adequate installation clearance, or an SGM Black 80 mil kit when its exact selected product model and coverage have been verified. Both need correct application and realistic expectations about noise reduction.

Affiliate disclosure: Both original Amazon product links are affiliate links. As an Amazon Associate I earn from qualifying purchases.

Good luck and happy soundproofing!
