How this guide was prepared: This is a source-led buying comparison, not a hands-on test. Manufacturer specifications are distinguished from seller claims. No product-specific acoustic laboratory test was performed by Soundproofing Dude; do not interpret descriptive noise-control language as a verified decibel reduction.
SmartSHIELD 118 mil and SoundSkins Wavy PLUS are both marketed for automotive insulation, but comparing them on a single “sound deadening” scale hides an important difference: SmartSHIELD is a thin, foil-faced XPE foam product, while SoundSkins Wavy PLUS is a much thicker contoured closed-cell foam. Their intended placement matters more than a marketing superlative.
What is actually being compared?

| Factor | SmartSHIELD listing | SoundSkins Wavy PLUS |
|---|---|---|
| Format | Self-adhesive aluminum/XPE foam composite | Contoured closed-cell foam mat |
| Listed thickness | 118 mil, approximately 3 mm | 984 mil, approximately 25 mm |
| Advertised coverage | 36 sq ft | 26.92 sq ft |
| Evidence quality | Retail listing specifications located; no independently verified performance data located | Product identity and dimensions cross-checked against the manufacturer |
The SoundSkins product is identifiable as SSK-WAVYPLUS on the manufacturer’s page. For SmartSHIELD, the 118-mil/36-sq-ft configuration appears in the linked commercial listing; the temperature and decibel claims in older write-ups should not be relied on without a technical datasheet.
Why the 3 mm versus 25 mm distinction matters

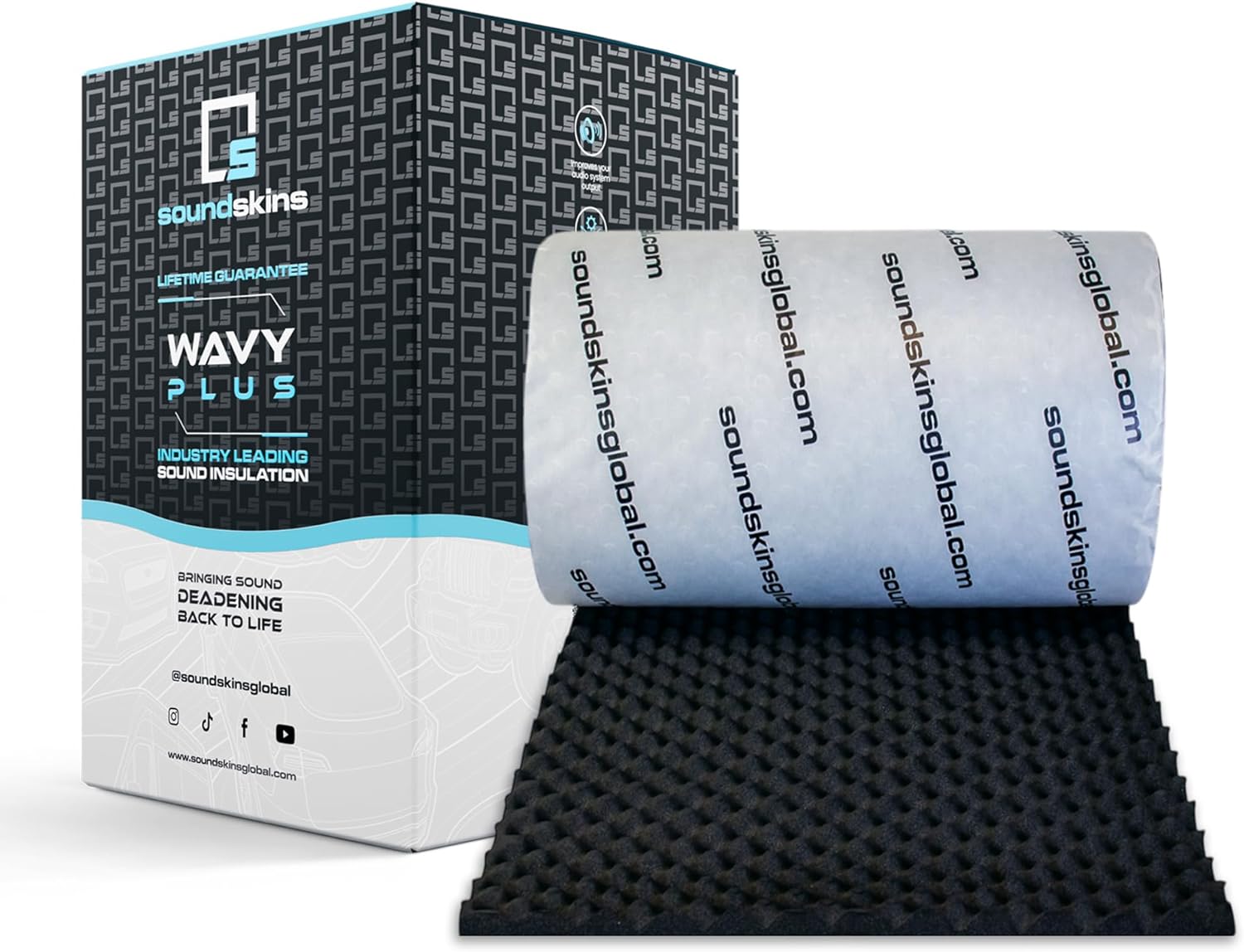

The SoundSkins manufacturer’s page identifies Wavy PLUS by SKU SSK-WAVYPLUS and describes a 19.7 × 196.9-inch roll, approximately 25 mm thickness, 26.9 sq ft coverage and pressure-sensitive adhesive backing. The product is positioned for reducing contact rattles and for cushioning or insulating an automotive interior. Those manufacturer specifications identify the product but are not an independent head-to-head vehicle-noise measurement.

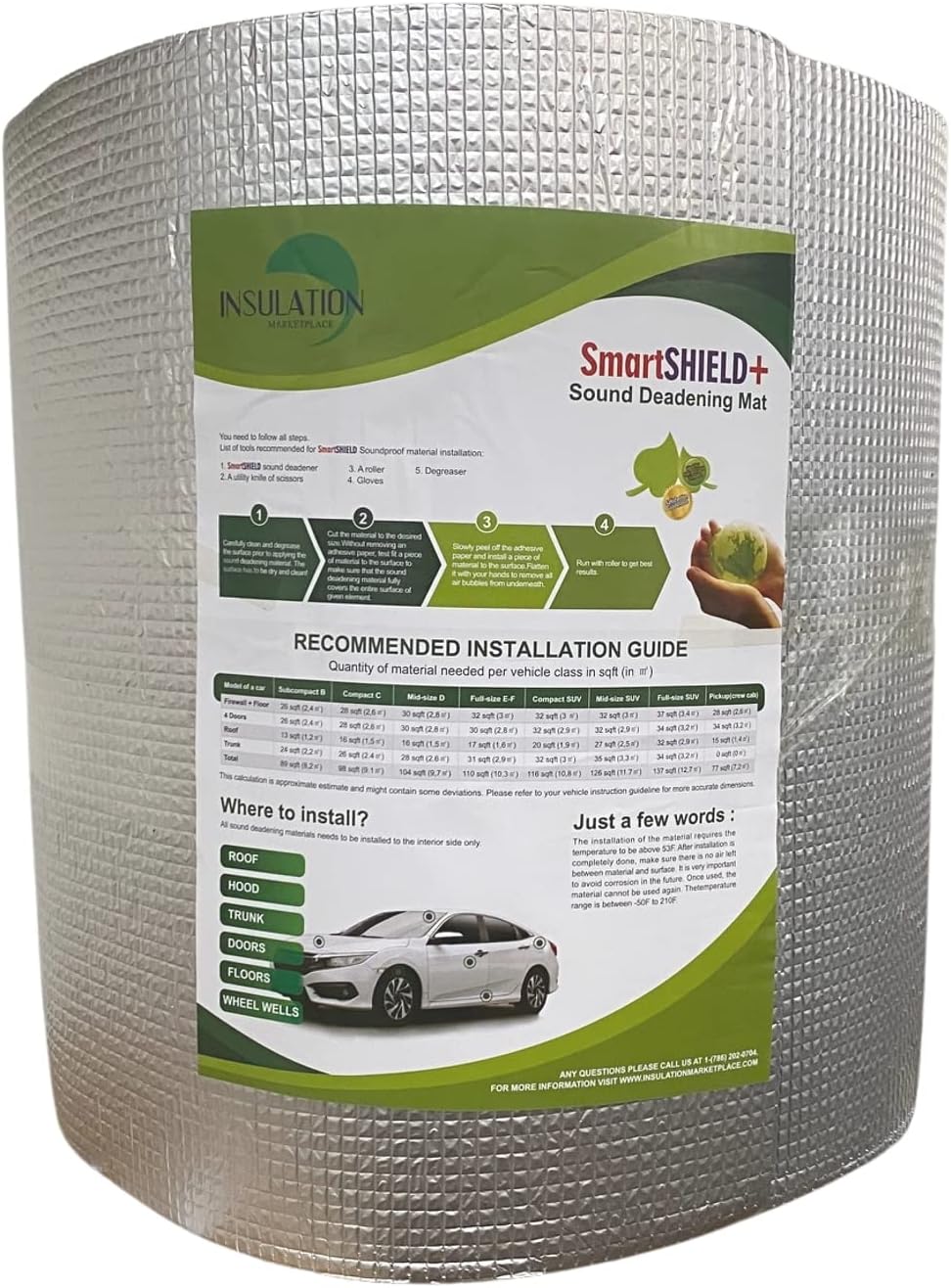

The SmartSHIELD item linked here is the retail configuration under ASIN B0BBP8SWB3, described in retailer listings as 118 mil (about 3 mm), 36 sq ft, aluminum-faced XPE foam. Those numbers are seller-listed variant specifications rather than a manufacturer-certified vehicle acoustic report; confirm the actual supplied roll dimensions at checkout. The roughly eightfold nominal thickness difference (25 ÷ 3 ≈ 8.3) is significant for clearance and trim fit, but is not an eightfold difference in sound absorption or isolation.
Competitor context: Broader searches for car sound-deadening foam often mix flexible cushioning layers with butyl constrained-layer dampers, which serve different mechanical jobs. This comparison’s value is the explicit material-role and fit decision, not a claim that either foam is the best standalone solution for panel resonance or a verified decibel winner. See also the SoundSkins versus Siless liner comparison for another foam-focused product pairing.
A foam liner is not the same as a vibration damper
Closed-cell foam commonly serves as a cushion, spacer or decoupling layer. A foil-facing may be useful in a correctly designed thermal installation. Neither alone proves that a car door’s metal panel will be effectively damped; that function is usually assessed separately for a constrained-layer damping material. If your primary complaint is booming sheet-metal resonance, determine whether the panel first needs appropriate damping rather than adding foam everywhere.
Installation choices that change the result
- Available depth: measure around glass tracks, trim clips, wiring and door latch linkages. A nominal 25 mm liner cannot be assumed to fit where 3 mm foam would.
- Water and drainage: do not block door drains or trap moisture in inaccessible cavities.
- Thermal claims: assess heat source, air gaps and application position. Foil-faced does not automatically mean an effective radiant barrier in every orientation.
- Coverage: 36 sq ft versus 26.92 sq ft is package area, not proof of treatment efficiency.
Who should choose which?
SmartSHIELD is the candidate for thinner foam/foil coverage when clearance is limited, provided the exact commercial variant and attachment specifications can be confirmed. SoundSkins Wavy PLUS suits projects that explicitly need a substantial, contoured foam layer and have space to accommodate it. Neither can be awarded a measured acoustic win from the available listing evidence.
Product checks: SmartSHIELD and SoundSkins Wavy PLUS. For choosing layer types, consult our automotive sound-deadening overview.
Affiliate disclosure: Amazon links may earn a commission at no additional cost to you.
Good luck and happy soundproofing.
