Guide to Selecting and Installing Acoustic Foam for Different Spaces

Acoustic foam can be a useful addition to home studios, offices, gaming rooms, home theaters, and other spaces where echo and reflected sound are a problem. It is relatively easy to install, available in several shapes and thicknesses, and can make a noticeable difference to how a room sounds.

There is one important distinction to understand before buying it: acoustic foam is primarily a sound-absorbing material, not a complete soundproofing solution. It helps control sound within a room, but it does not have enough mass to stop substantial noise from travelling through walls, floors, ceilings, doors, or windows.

This guide explains what acoustic foam does well, how to choose the right type, where to place it, and how to install it without expecting it to do a job it was never designed for.

What Does Acoustic Foam Actually Do?

When sound reaches a hard surface such as drywall, glass, or a bare ceiling, much of that sound reflects back into the room. These reflections contribute to echo, reverberation, and poor speech or recording clarity.

Acoustic foam absorbs part of that reflected sound energy instead of allowing all of it to bounce back into the space. This can make voices clearer, reduce excessive echo, and improve the acoustic character of a room.

What it generally does not do is stop significant noise passing through the structure of the building. If noise from another room, upstairs neighbor, traffic, or loud equipment is travelling through the building itself, you will normally need materials and techniques involving mass, sealing, insulation, damping, or decoupling.

For a broader look at available products, see our guide to the best acoustic foam options.

Where Acoustic Foam Works Best

• Home recording studios: Helps reduce reflections around microphones and listening positions.
• Home theaters: Can improve dialogue clarity and reduce excessive reflections from walls.
• Gaming and streaming rooms: Helps create a more controlled acoustic environment around microphones.
• Home offices: Can reduce echo during video calls and improve speech clarity.
• Music practice rooms: Helps control reverberation, although additional bass treatment may be needed.
• Podcast rooms: Useful for reducing room reflections that microphones can pick up.

If you are working specifically on a home theater, our home theater soundproofing guide covers the broader structural side of reducing noise as well.

How to Choose Acoustic Foam

Acoustic foam comes in different thicknesses, densities, shapes, and panel sizes. The best option depends on the room and the type of reflections you are trying to control.

Factor	What to Consider
Thickness	Thicker panels can generally absorb a broader range of frequencies than very thin foam.
Density	Density affects how the material interacts with sound, although higher density alone does not automatically mean better performance.
Panel shape	Wedge, pyramid, egg-crate, and flat panels mainly differ in appearance and exposed surface geometry.
Coverage	You usually do not need to cover every inch of the room. Strategic placement can be more useful.
Fire performance	Check the manufacturer’s current fire-safety information, particularly for commercial spaces or rooms containing electrical equipment.
Mounting method	Consider whether the panels use adhesive backing or require separate mounting strips, adhesive, or removable supports.

Does the Shape of Acoustic Foam Matter?

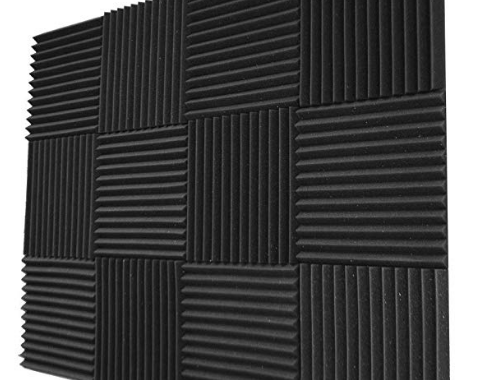

Wedge, pyramid, and egg-crate foam panels are common because their shaped surfaces increase exposed area and create the familiar studio look.

However, shape alone should not be the deciding factor. Thickness, material properties, placement, and the acoustic problem you are trying to solve usually matter more than whether the surface has wedges or pyramids.

Audimute Peacemaker MLV

Peacemaker is eco-friendly, lightweight, and cheaper. It is almost on par with a traditional MLV for effectiveness. Heavier product is better for sound management but is not always practical. However, Peacemaker is still able to deliver great results without needing the same mass.

Eco-friendly

Peacemaker is produced using recycled materials, making it eco-friendly and unique in its manufacturing. It also boasts great after-sales service by a small but dedicated company.

How Thick Should Acoustic Foam Be?

Very thin foam can help reduce some higher-frequency reflections, but it becomes less effective as frequencies get lower.

Thicker panels generally provide useful absorption across a wider frequency range. If low-frequency buildup is a significant problem, standard wall foam may not be enough and dedicated bass traps or thicker broadband absorbers may be more appropriate.

Where Should You Put Acoustic Foam?

Covering every wall with foam is rarely necessary. Placement should focus on the areas where strong reflections are affecting the room.

• First reflection points: Particularly useful in listening rooms and home studios.
• Behind or beside a microphone: Can reduce nearby reflections during recording or streaming.
• Opposite large hard surfaces: Helps reduce repeated reflections between parallel walls.
• Ceilings: Ceiling treatment can help where vertical reflections are a problem.
• Rear walls: Depending on the room, treatment behind the listening or recording position may improve clarity.

Start with a smaller amount of treatment and listen to the difference before covering large areas. A room can also become overly dead if too much high-frequency absorption is added without considering the full frequency range.

How to Install Acoustic Foam

1. Plan the layout: Decide where treatment is actually needed before attaching anything permanently.
2. Measure the area: Work out how many panels you need and how they will be spaced.
3. Clean the surface: Dust and dirt can weaken adhesive performance.
4. Test the position: Hold or temporarily mount panels before committing to a permanent layout.
5. Choose the mounting method: Use the manufacturer’s adhesive system or another suitable mounting method for the wall surface.
6. Press panels evenly: Make sure each panel makes proper contact without crushing or deforming the foam.

If you are renting, consider removable mounting methods rather than applying strong adhesive directly to painted drywall. Some foam adhesives can damage paint or leave residue when removed.

Acoustic Foam vs Soundproofing

This is where many soundproofing projects go wrong. Acoustic foam and structural soundproofing are related to sound, but they perform different jobs.

Acoustic Foam	Structural Soundproofing
Reduces echo and reflections inside a room	Reduces sound passing between spaces
Lightweight and porous	Often relies on dense materials and separated assemblies
Useful for studios and recording spaces	Useful for walls, ceilings, floors, doors, and windows
Easy to add after a room is completed	May require construction or renovation
Primarily acoustic treatment	Uses mass, absorption, damping, sealing, and/or decoupling

If your real problem is hearing people through a wall, acoustic foam on the wall is unlikely to solve it. Start by looking at the construction of the wall, gaps around doors or outlets, and other potential sound paths.

Can Acoustic Foam Help With Bass?

Standard thin acoustic foam is much more effective at controlling mid- and higher-frequency reflections than deep bass.

Low-frequency sound has much longer wavelengths and generally requires thicker absorbers or purpose-designed bass traps. Simply adding more thin foam to the wall is not the same as treating bass problems properly.

Common Acoustic Foam Installation Mistakes

• Expecting it to block outside noise: Foam is mainly for controlling reflections inside the room.
• Covering every wall: More foam is not automatically better.
• Ignoring bass problems: Thin foam alone is unlikely to control significant low-frequency buildup.
• Using unsuitable adhesive: Some adhesives can damage walls or the foam itself.
• Ignoring fire-safety information: Check the product’s current specifications before installing large quantities.
• Placing panels only for appearance: Strategic acoustic placement usually matters more than creating a decorative pattern.

If you are interested in simply changing to soundproof windows, you can see my blog on these windows. This would require you to replace your current windows completely.

Are noise-canceling blackout curtains effective?

Of course, you will need to know the amount of light these curtains are able to block out. Noise level reduction is another factor and what exactly can you expect from these curtains? The installation process, size and weight, and longevity will all be discussed in this blog.

Soundproofing your home

Ready to transform your living space into a sanctuary of peace and quiet? Dive into our essential guide to soundproofing your home! From selecting the right materials to easy DIY installation tips, we’ve got everything you need to block out unwanted noise and create the tranquil environment you’ve always dreamed of.

Find out more about soundproofing your home’s windows, doors, ceilings, and floors. Don’t let the buzz of the outside world disrupt your peace. Start your soundproofing journey today and enjoy the serene, noise-free home you deserve. Click here to unlock the secrets to a quieter home!

Final Thoughts

Acoustic foam can be very useful when the goal is to reduce echo, reflections, and excessive reverberation inside a room. It is relatively inexpensive, easy to work with, and can improve studios, offices, home theaters, gaming rooms, and recording spaces.

The important thing is to use it for the right job. If you need to prevent substantial noise from entering or leaving the room, look beyond foam and address the walls, ceiling, floor, doors, windows, and other transmission paths with proper soundproofing methods.

Good luck and happy soundproofing!
