If you are researching Kilmat for a car sound-deadening project, the main question is not whether it can make a vehicle completely soundproof. It cannot. The more useful question is whether Kilmat is a practical way to reduce vibration and resonance from large metal panels without paying premium-brand prices.
For many DIY installations, the answer is yes. Kilmat is a butyl-based automotive vibration-damping mat with an aluminum foil facing. It is designed to bond directly to sheet metal in areas such as doors, floors, trunks, roofs, and other interior body panels.
In this Kilmat review, we will look at what the material actually does, where it works best, the differences between common Kilmat thicknesses, installation, limitations, and how it compares with alternatives such as Dynamat, Noico, and HushMat.
Kilmat Review: Quick Verdict
| Best for | DIY automotive vibration damping |
| Primary material | Butyl damping layer with aluminum foil facing |
| Popular version | Kilmat 80 mil |
| Typical applications | Doors, floor, trunk, roof and interior body panels |
| Main strength | Reducing panel vibration and resonance |
| Main limitation | It is not a complete airborne-noise barrier by itself |
| DIY friendly? | Yes, provided the surface is properly prepared and the mat is firmly rolled down |
Our verdict: Kilmat makes the most sense for a budget-conscious DIYer who wants a conventional butyl vibration-damping mat for automotive sheet metal. It is especially appealing for door, floor and trunk projects where controlling panel resonance is the first step toward a quieter cabin.
Check the current Kilmat 80 mil listing on Amazon
What Is Kilmat?
Kilmat is an automotive constrained-layer vibration-damping material. In simple terms, it sticks to thin metal panels and helps reduce the amount those panels flex and resonate when excited by tires, speakers, engine vibration, exhaust vibration or normal road inputs.
The popular Kilmat 80 mil product uses a self-adhesive butyl layer with a foil surface. The current 80 mil listing covers approximately 36 square feet and uses individual sheets measuring about 15.7 x 9.8 inches. The foil is embossed, which gives installers a useful visual indication: once the pattern has been firmly rolled flatter, you can see where good contact has been achieved.
That distinction is important. Kilmat is primarily a vibration damper. It should not be confused with a heavy sound barrier such as mass-loaded vinyl, nor with a soft decoupling or sound-absorbing foam layer.
What Does Kilmat Actually Do?
Kilmat works best when it is attached directly to resonant sheet metal. Instead of allowing the metal to ring and vibrate freely, the butyl damping layer helps dissipate some of that vibrational energy.
- Door skins: Helps reduce resonance from speakers and road vibration.
- Floor pans: Helps damp vibration transmitted through the vehicle structure.
- Trunk panels: Useful for reducing large-panel resonance and rattling.
- Roof panels: Can reduce the hollow or drumming character of thin roof sheet metal.
- Quarter panels and wheel-area metal: Can form part of a broader treatment aimed at controlling road-induced vibration.
What Kilmat does not do is create complete acoustic isolation on its own. Tire noise, exhaust noise, engine noise and wind noise can also travel through openings, glass, seals and airborne paths. A comprehensive quiet-car project may therefore require additional materials or improvements after the vibration-damping stage.
Kilmat 80 Mil Review
The Kilmat 80 mil version is the product we would focus on for most readers of this review. It is one of the brand’s established automotive butyl mats and is currently available in several coverage options.

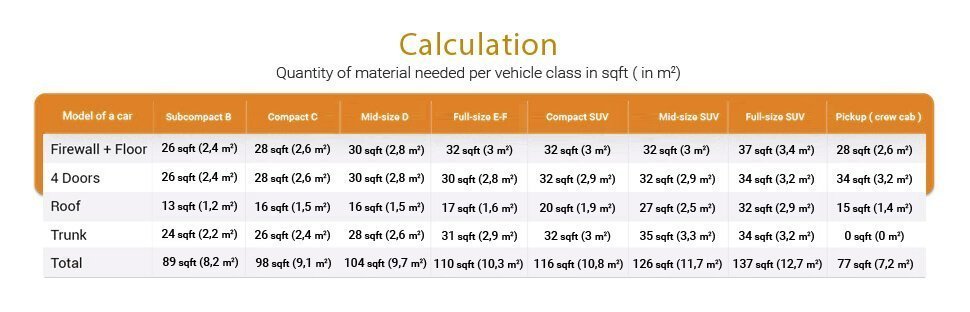

The 36-square-foot version is a useful size for a moderately sized DIY project. Depending on the vehicle and how extensively you intend to treat it, that may be enough for several doors, a trunk area, selected floor sections, or a combination of targeted panels.
What We Like About Kilmat 80 Mil
- Butyl construction: Appropriate for conventional automotive panel damping.
- Pre-cut sheets: Easier to position around irregular areas than one large roll.
- Embossed foil: Gives you a visible indication of where the material still needs more rolling pressure.
- DIY-oriented installation: Measure, cut, peel, position and roll firmly onto a clean surface.
- Useful coverage: The common 36-square-foot kit can handle a meaningful portion of many DIY projects.
What We Do Not Like
- It is not a complete soundproofing system. Additional treatments may be needed for airborne road or tire noise.
- Installation still takes time. Removing trim, cleaning metal and rolling every piece properly usually takes much longer than simply sticking the material down.
- More coverage is not always necessary. The goal should be treating useful resonant areas rather than automatically covering every possible square inch.
- Thickness alone does not tell you which product is “best.” Material formulation, adhesion, mass, application and installation quality all matter.
Kilmat 50 Mil vs 80 Mil vs Other Thicknesses
Kilmat has been sold in multiple thicknesses and package sizes. The current product family includes variants such as 50 mil, 80 mil and thicker options.
It is tempting to assume that the thickest mat must automatically be the best. We would not choose automotive damping material on thickness alone.
| Option | When It May Make Sense |
|---|---|
| 50 mil | Projects where lower thickness, lower weight or easier fitting is a priority. |
| 80 mil | A useful general-purpose choice for door, floor, trunk and body-panel vibration damping. |
| Thicker variants | May suit particular projects, but should not be selected solely because the number is larger. |
For most DIY shoppers comparing the familiar Kilmat range, 80 mil is the version we would start with. It is widely available, provides substantial butyl coverage, and is suitable for the major interior sheet-metal areas people commonly want to treat.

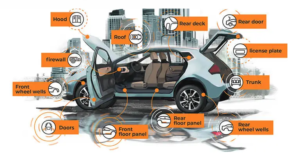

Where Should You Install Kilmat?
The best location depends on the noise or vibration problem you are trying to solve.
Doors
Door skins are large, relatively thin pieces of metal and can resonate noticeably. Applying damping material to suitable sections of the outer or inner door structure can reduce panel vibration and may also improve the perceived solidity of the door and speaker installation.
Floor
Floor treatment can help control structural vibration before additional noise-control layers are considered. For a detailed floor procedure, see our step-by-step guide to installing automotive sound-deadening material on a car floor. The basic surface-preparation and rolling principles also apply to butyl mats such as Kilmat.
Trunk
The trunk floor, spare-wheel well, rear quarter panels and other large metal surfaces can transmit road and exhaust-related vibration. These areas are often accessible enough to make a good first DIY project.
Roof
A broad roof panel can create a noticeable drumming or hollow resonance. Damping selected roof metal can help, although headliner removal and safe reinstallation make this a more involved project than treating a trunk or door.
How to Install Kilmat Correctly
Good installation matters as much as choosing the material. A damping mat that is loosely attached, applied over dirty metal or poorly rolled will not perform as intended.
- Expose the metal. Remove the necessary carpet, trim, door card or interior panel carefully.
- Clean the surface. Remove dust, oil, wax and residue. Allow the area to dry completely.
- Plan the coverage. Identify the large, flexible or resonant areas rather than blindly covering everything.
- Measure and cut. Cut sheets into manageable pieces while keeping wiring, drains, fasteners and service openings accessible.
- Peel and position. Place the adhesive side directly against the clean metal.
- Roll firmly. Use a proper installation roller and work across the entire sheet, especially edges, depressions and contours.
- Check the embossed foil. Kilmat’s foil pattern helps show whether you have applied adequate pressure.
- Inspect before reassembly. Make sure nothing interferes with wiring, window mechanisms, seat mounts, drain holes or moving parts.
- Reassemble carefully. Return the vehicle interior to its original configuration.
Wear gloves when cutting or handling foil-faced damping material because the edges can be sharp.
For more detail on the overall process, see our complete automotive sound-deadening installation guide.
Does Kilmat Reduce Road Noise?
Kilmat can contribute to a quieter vehicle, but it is important to understand how.
When road input causes a door, floor or body panel to vibrate, a butyl damping mat can reduce that panel resonance. That may reduce some of the noise you hear inside the cabin.
However, tire and road noise can also travel through the vehicle as airborne sound. A vibration damper alone is not designed to block all of that energy. If you are pursuing a more comprehensive reduction, the damping layer may be followed by appropriate decoupling, absorption or barrier materials depending on the application.
Does Kilmat Provide Thermal Insulation?
The foil surface can reflect some radiant heat, but we would not treat Kilmat as a substitute for a dedicated automotive thermal-insulation layer where significant heat control is required.
The primary reason to buy Kilmat is vibration damping. Any thermal benefit should be considered secondary rather than the main reason for choosing the product.
Kilmat vs Dynamat, HushMat and Noico
Kilmat does not need to be the winner in every comparison to be a sensible purchase. Different brands appeal to different buyers based on budget, kit size, material properties and installation preferences.
- If you are comparing Kilmat with a longstanding premium brand, read Kilmat vs Dynamat.
- If you are deciding between two popular DIY-oriented damping mats, see Noico vs Kilmat.
- If HushMat is also on your shortlist, see our Kilmat vs HushMat comparison.
Those pages go deeper into the differences. This review is intentionally focused on whether Kilmat itself is worth considering.
Who Should Buy Kilmat?
Kilmat is a good fit if:
- You want to reduce vibration from doors, floors, trunks or other automotive sheet metal.
- You are comfortable removing interior trim and doing the installation yourself.
- You want a butyl damping mat without automatically moving to the most expensive brand.
- You prefer pre-cut sheets that are easy to position around irregular vehicle panels.
- You understand that damping is one component of automotive noise control rather than complete soundproofing.
Who Should Look at Something Else?
Kilmat may not be the complete solution if:
- Your main problem is airborne tire or exhaust noise rather than vibrating sheet metal.
- You need a dedicated thermal barrier for a high-heat application.
- You want a professional installer to design a multilayer acoustic treatment.
- You expect one layer of damping mat to make a vehicle silent.
Kilmat Review: Pros and Cons
| Pros | Cons |
|---|---|
| Butyl-based automotive damping material | Not a complete sound barrier |
| Suitable for common DIY vehicle projects | Requires interior disassembly and careful preparation |
| Pre-cut sheets are easy to handle | Coverage requirements vary significantly by vehicle |
| Embossed foil helps indicate adequate rolling | Additional materials may be needed for serious road-noise reduction |
| Useful 80 mil option for general-purpose damping | Thickness should not be treated as the only measure of performance |
Frequently Asked Questions
Is Kilmat good?
For DIY automotive vibration damping, Kilmat is a reasonable option. Its butyl layer adheres to sheet metal and is intended to reduce panel resonance. Whether it is the best choice depends on your budget, the area being treated and whether you need additional acoustic layers.
Is Kilmat soundproofing?
Kilmat is more accurately described as a sound-deadening or vibration-damping material. It can help make a vehicle quieter by reducing structural resonance, but it does not completely block sound transmission.
What is Kilmat made from?
The current Kilmat 80 mil product is a self-adhesive butyl-based damping material with an aluminum foil facing.
Is Kilmat 80 mil better than 50 mil?
Not automatically. The 80 mil version provides a thicker damping layer, but thickness is only one factor. Vehicle location, material mass, adhesion, coverage strategy and installation quality all influence the final result.
Do you need a roller to install Kilmat?
We strongly recommend one. Firm rolling helps establish full contact between the butyl layer and the vehicle’s sheet metal. Kilmat’s embossed foil also makes it easier to see where additional rolling pressure may be needed.
Can Kilmat be installed on car doors?
Yes. Doors are one of the common areas where automotive damping mats are used. Take care not to obstruct drainage holes, wiring, locks or window mechanisms.
Final Verdict: Is Kilmat Worth It?
Kilmat is worth considering if you want a straightforward butyl vibration-damping mat for a DIY automotive project. Its strongest use is reducing resonance in metal panels such as doors, floors and trunks.
The important thing is to buy it for the right job. Kilmat is not a magic layer that blocks every type of car noise, and we would not choose it simply because one version is thicker than another. Used correctly as the damping stage of a sensible automotive noise-control project, however, it can be a practical option.
For most readers considering the brand, the Kilmat 80 mil version is the logical place to start.
Check Kilmat 80 mil availability on Amazon
Good luck and happy soundproofing!
